Types of Micrometer Bookmarked

In the previous article, we have talked about the differences between micrometer and caliper. As we know, a micrometer is not as versatile as a caliper. Micrometer only comes with a specific function in its unit. While calipers can cover several measurements in a single unit of the caliper.

As our observation on the web, these are our findings and also we include the pictures of the several models of micrometer currently available.

Based on The Dimension It Measures

You will require three units of mic to measure outside, inside and depth.

1. Outside Micrometer

Outside micrometer is the most used mic. It clamps the object from outside side. It measures thickness, outside diameter, width, and length. But, its range is short. The most common is 1".

Image Credit: Wikipedia

2. Inner Micrometer

As the name tells, it measures inner dimension such as inner diameter.

Image Credit: Wikipedia

3. Depth Micrometer

A single unit of caliper can be used to measure depth. A micrometer doesn't. There is a model called depth micrometer. The look can be seen on the following picture.

Image Credit: Pixabay

Based on Its Scale Model

1. Vernier Micrometer

Image Credit: Pixabay

Vernier micrometers manifest and employ vernier scale to magnify its measurement. Unlike other micrometers, this kind of micrometer has better resolution because there are three scales printed. They are the main scale on the barrel, the scale on the thimble, and the horizontal scale on the thimble which is called the vernier scale. The Vernier scale is also used in the vernier scale.

2. Dial Scale Micrometer

Image Credit: Pixabay

It employs the dial scale like the dial caliper. The needle rotates to show reading. However, it's rare for us to see this model on the market. Perhaps, you have one in your shop.

3. Mechanical Counter Micrometer

Like a tally counter, this one has mechanical counter as the reading display. It's unique. But, this one is not popular.

The real look can be seen in this Youtube video.

4. Digital Micrometer

Digital micrometer serves you with incredible speed for measurement. You are no longer to reading the read the two scales. You can instantly get the reading through the LCD screen. Today's digital micrometer is also be able to allow you transfer the data to your smartphone or computer. Herewith, you can also make a rapid repetitive measurement because the reading is directly stored in your spreadsheet.

If you have many objects to measure, a digital micrometer with data transfer feature can be a nice investment.

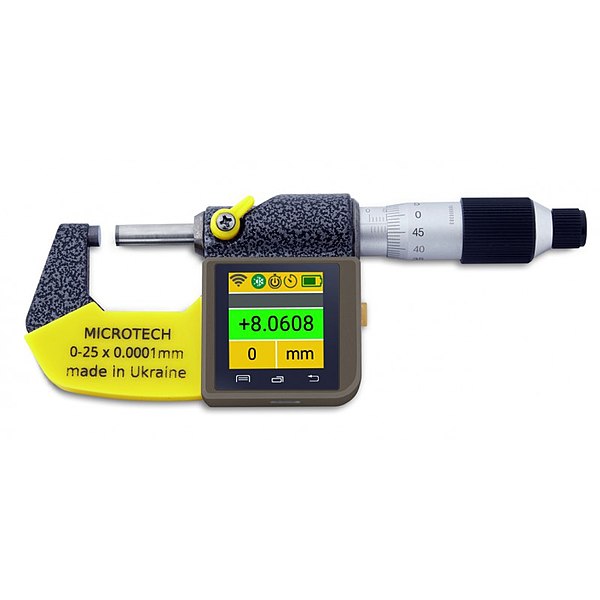

Image Credit: Wikipedia

The above digital micrometer applies touchscreen. As you can see it allows Bluetooth connection and wifi for data transfer.

Another advantage of a digital micrometer is its analog reading availability. Though not digital micrometer allows you to take the reading manually. When you are about to run out of battery, you are still able to use it.

Based on Its Anvil Shape

1. Flat Anvil Micrometer

Image Credit: Wikipedia

It's easy to identify the anvil surface of the above picture. As you can see, it's flat.

2. Ball Anvil Micrometer

Image Credit: AccurateShooter.com

To quantify the thickness wall tube, a ball micrometer is recommended. It's less error compared to the usual anvil (Flat). Ball micrometer is applied in reloading.

3. Thread Micrometer

Image Credit: Wikipedia

4. Pointed Micrometer

Image Credit: Pixabay

5. Tubing Micrometer

Image Credit: AccurateShooter.com

6. Paper Micrometer

Designed exclusively to measure paper thickness.

7. Deep Throat Micrometer

8. Pitch Micrometer

9. Three Point Bore Micrometer

10. Three Flute V-Anvil Micrometer

That's all guys. Never ever again you get confused the types of micrometer. Another type is based on the reading. There are metric and imperial mic. Metric uses mm while imperial uses inch. This is just about how familiar you are. If you live in the USA, then you have to prefer the inch reading.

Micrometer and Caliper Differences

When it comes to guns, besides securing your guns, it's not far away from reloading. When reloading, you will precision measuring tools. Some of them are micrometers and calipers. But when do you actually use the micrometer and when to use the caliper? These questions may be easy to answer for advanced users. However, beginners may need more knowledge treatment. In this post, we are trying to cover some differences of micrometer and caliper.. These differences can help you understand micrometer and caliper's typical functions so that you know what to pick.

 Here is the list of those things.

5 Differences Between Caliper and Micrometers

1. Speed: Which one is faster to use?

With different body parts designed, these two tools offer different way to use as well as different speed. When using caliper, you will only need to slide it in order to adjust the jaws with the item being clamped in between. On the other side, when you use micrometer, you will need to spin the rachet on the bottom to hold the object you are going to measure. Moving an inch with a caliper does not require as much effort as micrometer does. In addition, taking a measure with micrometer will need you to be careful with clamping the object in order to prevent it from getting too much pressure and broken. By reading the fact I just mentioned, I am certain you can conclude in an instant which one is relatively faster to use, which is caliper.

2. Measuring Range

Both micrometer and caliper offer different measuring ranges that are quite significant and makes each one of them equally crucial. Micrometer has much narrow measuring range compared to caliper, considering caliper’s lengthy body that looks like a ruler. On the other side, micrometer seems shorter with a C-frame body. In general, the measuring range of micrometer is 1”, while caliper offers measuring range up to 6”. However, nowadays there are different ranges of micrometer available that you can find easily, such as 0-1”, 1-2”, 2-3”, 3-4”, 4-4”, and 5-6”. You also can find other different options of caliper with measuring range such as 12”, 18”, 24”, even up to 40”.

3. Resolution (The smallest reading)

Despite its lack of speed and measuring range, apparently, micrometer offers much better resolution compared to caliper. Currently, you can find micrometer with resolution as much as 0.0001″, 0.00005″, or even 0.1 μm, while caliper only offers resolution up to 0.001”. But oftentimes, the micrometer with resolution of 0.00005” is much easier to be found and more apt to people’s needs.

Most people will firstly determine a particular aspect, such as thickness, diameter, or depth of an item using caliper, then they will use micrometer if there is any need for more accuracy, thanks to its extra specific resolution.

4. Functions

Equipped with different measuring ranges and resolutions, it is obvious that these two tools are used for different purposes too. When you want to measure both inside and outside diameter of an object, you will want to use caliper. This is because the caliper in common provides 4 jaws that allow it to measure the inside as well as an outside of an item at once with one single caliper. In addition, you can also calculate the depth of the object using caliper because it is featured with a stick that you can use to put into the object to see how much its depth is.

On the other side, micrometer can only be used to measure either an inside or an outside diameter. When you are trying to measure an inside and outside diameter of certain object using micrometer, you will have to prepare two of them. You can also measure the depth of an object using micrometer as well, but you obviously will need a separate tool for that.

5. Body Parts

When you use either a micrometer or caliper, you will need to clamp the item you wish to measure. Although both of them clamp the item, these two tools actually come in different shapes and bodies. Micrometer comes with a U or C-frame that allows it to measure cylinders, while the caliper is straight as a ruler with the scale on its sides.

In order to hold the measured object, a micrometer uses anvil and spindle. The anvil is usually flat, but you can find micrometers with other models of an anvil, such as tubular, ball, etc. On the other side, caliper generally offers 4 parts that can be used to clamp an object you want to measure, they are 2 internal and 2 external jaws that are flat and pointed, but you can find calipers with other shapes as well.

In terms of giving consistent pressure to the measured item, micrometer has the ratchet driver at the bottom end of its body that you can rotate to allow the spindle to move accordingly, adjusting itself with the item you desire to measure. Instead, the caliper has a part called a thumb scroll that you can simply roll on so that its jaws can clamp the item steadily.

The part of the micrometer that gives a display of the scale is the thimble and barrel. Thimble is the one you can rotate with 50 equal divisions around its perimeter and each division’s value equals 0.01 mm. The barrel, on the other hand, is marked in 0.5 mm divisions. Digital micrometers are sometimes provided with either a thimble scale or none.

Compared with the caliper, either the vernier, dial, or digital provides a scale that is connected to its jaws and slides together.

Conclusion

Measuring components of a machine is crucial to make sure that it is supported by the exact size of components. Those who work in workshops, metal industries, or stuff related to machinery and engineering must be very familiar with micrometer and caliper, which are the linear measuring tools.

There are several types of micrometer, such as outside micrometer, inside micrometer, micrometer depth gauge, bench micrometer, and the special purpose micrometer, which consists of screw thread micrometer, vee-anvil micrometer, and thickness micrometer. There are also a variety of caliper, namely inside caliper, outside caliper, divider caliper, oddleg caliper, vernier caliper, dial caliper, and digital caliper that work with their own functions respectively. In this article, I only refer to the outside micrometer and vernier micrometer in general.

Although both of these tools have the same function which is to measure items such as screw, cable, etc. that requires high precision, there are several key things that make them different from each other. Gratefully, we have covered the differences in this post. For further reading, you may want to check out the source of information that is behind this post crafting.

References:

• https://www.theengineerspost.com/types-of-micrometers-screw-gauge/

• https://www.fullyinstrumented.com/micrometer-vs-caliper/

• https://www.youtube.com/watch?v=_wYHpDNwAfY

• https://www.youtube.com/watch?v=vkPlzmalvN4&t=325s
